The Carnot Engine is a theoretical notion that helps us to understand the limits of how efficiently heat may be transformed into work. It was developed by a French scientist named Sadi Carnot in 1824. The Carnot engine establishes an ideal standard for all heat engines, i.e., the most efficiency that any engine may attain under ideal circumstances, even if no actual engine can be 100% efficient.
What is a Heat Engine?

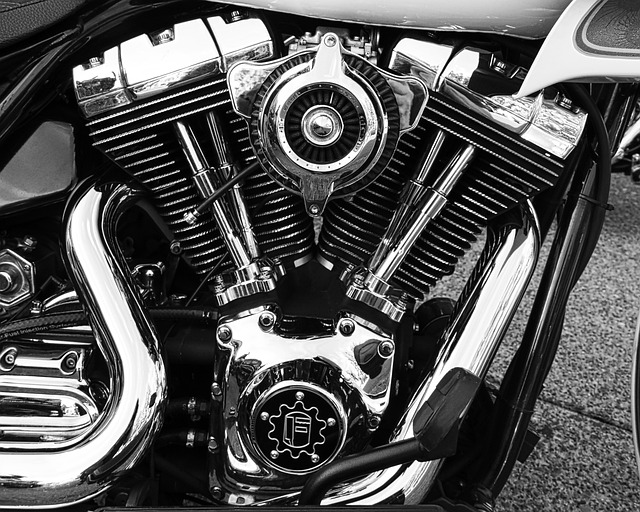

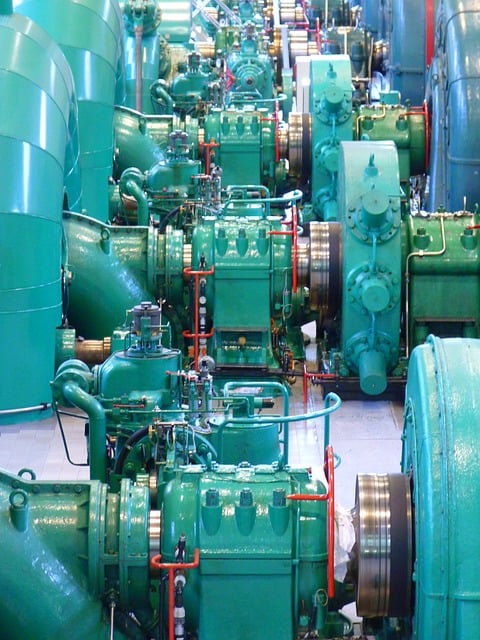

An apparatus that absorbs thermal energy from a source and transforms some of it into productive effort is called a heat engine. The residual energy is released into the environment as waste heat. Everyday examples are car engines, steam turbines, and even refrigerators (operating in reverse).
All reversible heat engines working between same temperatures are equally efficient and no heat engine can be more efficient that Carnot engine.
How Does the Carnot Engine Work?
The Carnot Cycle is a unique thermodynamic cycle that powers the Carnot engine. It has four stages:
Isothermal Expansion (Step 1):
o At temperature T1, the engine takes in heat Q1 from a heat reservoir or high-temperature source.
o The gas expands gradually, exerting force on the environment because it is an isothermal process (constant temperature).
Adiabatic Expansion (Step 2):
o The gas keeps expanding throughout this phase, but no heat is transferred to the environment.
o As the gas expands, its temperature decreases from T1 to T2.
Isothermal Compression (Step 3):
o Heat Q2 is released to a cold reservoir when the gas is squeezed at a lower temperature T2.
o Once more, the temperature stays constant during this step since it is isothermal.
Adiabatic Compression (Step 4):
Ultimately, there is no heat exchange as the gas is compressed back to its initial form.
o The cycle is completed when the temperature rises from T2 back to T1.
Efficiency of the Carnot Engine
The efficiency (η) of a Carnot engine is given by:
η = 1 − T2 / T1
Where:
T1 is the temperature of the hot reservoir (in Kelvin).
T2 is the temperature of the cold reservoir (in Kelvin).
Key Point:
The efficiency increases with the temperature differential between the hot and cold reservoirs. T2 should be as low as feasible to attain optimal efficiency, but in practice, it can never be zero.
Why is the Carnot Engine Important?
Sets the Limit of Efficiency:
o The Carnot engine demonstrates that no engine can run between the same two temperatures more efficiently than a Carnot engine.
Ideal Standard for Real Engines:
o Practical considerations like heat losses, friction, and other inefficiencies prevent real engines from ever becoming as efficient as a Carnot engine.
Foundation for Thermodynamics:
The second law of thermodynamics, which asserts that entropy (disorder) in an isolated system constantly rises, was made possible in part by the Carnot engine.
Practical Applications and Limitations
Despite being a theoretical idea, the Carnot engine is frequently used to enhance the design of actual engines. In order to get close to Carnot efficiency, engineers attempt to reduce heat losses and friction, but they can never completely eradicate these losses.
Limitations of the Carnot Engine:
Ideal circumstances: The Carnot engine assumes ideal circumstances, which real-world engines are unable to sustain.
Slow Process: The Carnot cycle is unsuitable for high-speed applications, such as car engines, due to its slow operations.
Material Restrictions: In order to achieve optimum Carnot efficiency, materials must be able to tolerate extremely high or low temperatures.
Carnot’s Contribution to Thermodynamics
The second law of thermodynamics, which asserts that heat cannot be entirely transformed into work without some waste, was established by Sadi Carnot’s research. Entropy, a measure of disorder or unpredictability in a system, was also developed as a result of his theories.
Fun Fact:

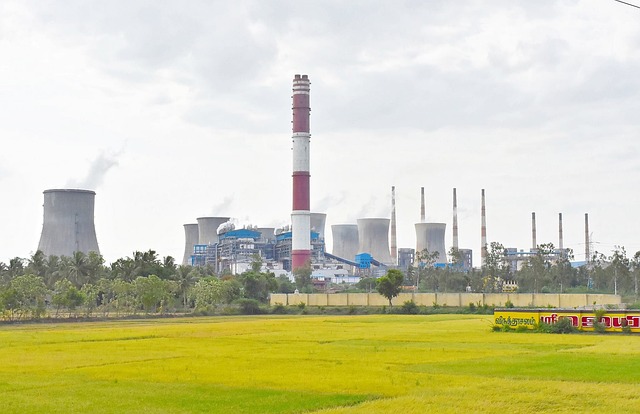

Carnot’s contributions were essential to the advancement of contemporary thermodynamics, despite the fact that his theories were not entirely recognised at the time of his death. His ideas are still applied today by engineers and scientists to enhance engines, power plants, and refrigeration systems.
Summary:
With two isothermal and two adiabatic processes, the Carnot engine is an ideal heat engine that runs in a totally reversible cycle. Its efficiency is only dependent on the temperatures of the heat source and heat sink.
Although no actual engine can match Carnot’s efficiency, engineers can create better, more effective systems by knowing about it.
The heat source’s temperature should be as high as possible and the heat sink’s temperature should be as low as possible in order to enhance efficiency.
Operating in a reversible cycle known as the Carnot cycle, the Carnot engine is an ideal heat engine. It uses four different thermodynamic processes (two isothermal and two adiabatic) to transfer heat between two reservoirs, one hot and one cold, in order to transform heat energy into work. It establishes the highest efficiency that any heat engine is capable of achieving.
Isothermal Expansion: Heat is drawn from a heated reservoiur at a steady temperature T1 in the Carnot cycle.
Adiabatic Expansion: The gas lowers its temperature to T2 by expanding without exchanging heat.
Isothermal Compression: At a constant temperature T2, heat is released into the cold reservoir.
Adiabatic Compression: This process returns the temperature to T1 by compressing the gas to its initial state.
The efficiency (η) of a Carnot engine is given by:
η = 1 − T2 / T1
Where:
T1 is the temperature of the hot reservoiur in Kelvin.
T2 is the temperature of the cold reservoiur in Kelvin.
Because it runs in a fully reversible cycle, which eliminates energy loss from heat loss, turbulence or friction and because it makes the unrealistic assumptions of perfect insulation and zero entropy growth, the Carnot engine is regarded as ideal.
• The maximum efficiency of any genuine heat engine is determined by the Carnot cycle.
No, because real engines have friction, heat losses, and other inefficiencies, they are unable to reach Carnot efficiency.
In real-world systems, it is impossible to sustain perfectly reversible processes, which are necessary for the Carnot cycle.
Why the harsh conditions necessary for optimal Carnot efficiency are too great for real materials to endure.
The second law of thermodynamics, which asserts that no engine can be 100% efficient, was established by the Carnot engine, which is why it is important to thermodynamics.
Presenting the idea of entropy, a system’s measure of disorder.
Offering the best benchmark for evaluating actual engines in order to increase their efficiency.
