Electronic Configuration of the d-Block Elements

Groups 3 through 12 of the periodic table contain the d-block elements, sometimes called as transition elements. These elements are essential to many industrial and chemical processes and are distinguished by the filling of the d-orbitals. Their electrical arrangements is vital to understand their physical characteristics, bonding, and chemical behaviuor.

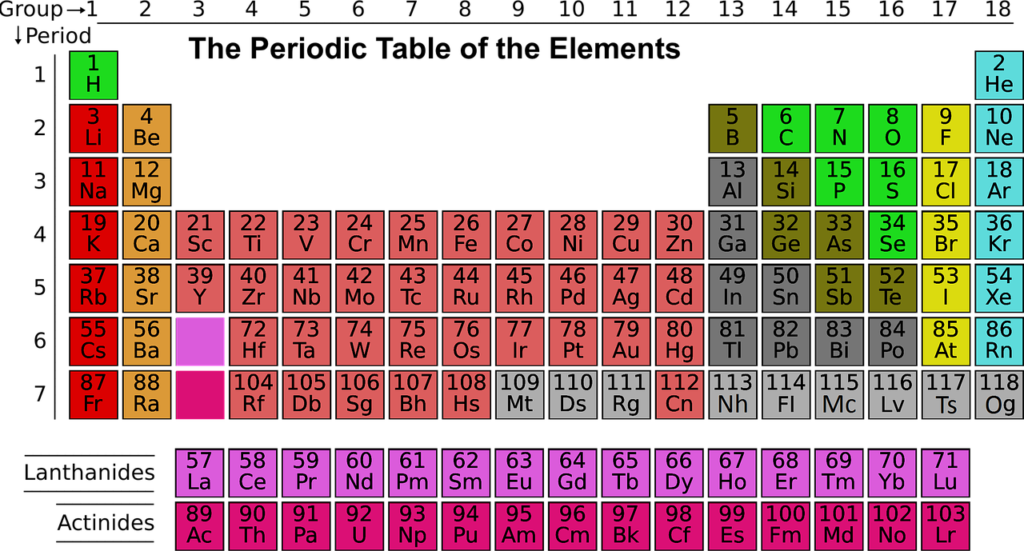

Electronic Configuration of the d-Block Elements-Periodic table
Periodic table

General Electronic Configuration of d-Block Elements

The general electronic configuration of d-block elements can be written as: (n-1)d1 – 10 ns0 – 2
Where n represents the principal quantum number of the outermost shell. The (n-1)d orbitals are filled progressively across the series while the ns orbitals hold 1 or 2 electrons.

.

Electronic Configuration of the d-Block Elements

Classification of d-Block Elements

The d-block elements are divided into following series based on their period:
1.First transition series (3d series): Scandium (Sc) to Zinc (Zn) (Z = 21 to 30)
2. Second transition series (4d series): Yttrium (Y) to Cadmium (Cd) (Z = 39 to 48)
3. Third transition series (5d series): Lanthanum (La) or Hafnium (Hf) to Mercury (Hg) (Z = 57 or 72 to 80).
4. Fourth transition series (6d series): Begins with Actinium (Ac) or Rutherfordium (Rf) (Z = 89 or 104 onwards; mostly synthetic elements).

Electronic Configurations of the First Transition Series

Element
Atomic Number
Electronic Configuration
Scandium (Sc)
21
[Ar] 3d¹ 4s²
Titanium (Ti)
22
[Ar] 3d² 4s²
Vanadium (V)
23
[Ar] 3d³ 4s²
Chromium (Cr)
24
[Ar] 3d⁵ 4s¹
Manganese (Mn)
25
[Ar] 3d⁵ 4s²
Iron (Fe)
26
[Ar] 3d⁶ 4s²
Cobalt (Co)
27
[Ar] 3d⁷ 4s²
Nickel (Ni)
28
[Ar] 3d⁸ 4s²
Copper (Cu)
29
[Ar] 3d¹⁰ 4s¹
Zinc (Zn)
30
[Ar] 3d¹⁰ 4s²

Notable Exceptions in Electronic Configuration

The additional stability associated with half-filled and fully filled d-orbitals causes some components in the d-block to display anomalies in their electrical configurations. There are two significant exceptions:
Chromium (Cr): Instead of [Ar] 3d⁴ 4s², it adopts [Ar] 3d 4s¹ to achieve a half-filled d-orbital, which provides additional stability.
Copper (Cu): Instead of [Ar] 3d⁹ 4s², it adopts [Ar] 3d¹ 4s¹, which results in a fully filled d-orbital, making it more stable.
Similar exceptions are seen in other transition series as well, such as Molybdenum (Mo), Silver (Ag), and Gold (Au).
Electronic Configuration of the d-Block Elements-Gold
Gold

Role of d-Electrons in Chemical Properties

The electrical arrangement of d-block elements determines their different chemical and physical properties:
States of Variable Oxidation: Multiple oxidation states (such as Fe²⁺ and Fe³⁺) are present in d-block elements because of the identical energy levels of the (n-1)d and ns orbitals.
Electronic Configuration of the d-Block Elements-
Orbitals
Coloured Compound Formation: Colours are created when certain light wavelengths are absorbed due to d-d transitions made possible by partially full d-orbitals.
Magnetic Properties: In d-orbitals, paired electrons provide diamagnetism, whereas unpaired electrons contribute to paramagnetism.
Catalytic Behaviuor: Because they can form complexes and change oxidation states, several d-block elements (such as Fe, Pt, and Ni) function as catalysts.
Complex Formation: Because transition metals have unoccupied d-orbitals, they can easily form coordination complexes with ligands.

Summary

The chemical behaviuor of d-block elements is largely determined by their electrical configuration. There are exceptions in the designs of half-filled and fully-filled d-orbitals due to their stability. They are essential in a wide range of scientific and industrial applications due to their special qualities, which are changing oxidation states, magnetism, and catalytic activity.
Groups 3 through 12 of the periodic table contain elements known as d-Block elements, which are distinguished by the progressive filling of their d-orbitals.
The general electronic configuration is (n-1)d1 – 10 ns0 – 2.
Because half-filled and fully-filled d-orbitals are more stable, some elements, as copper ([Ar] 3d¹⁰ 4s¹) and chromium ([Ar] 3d⁵ 4s¹), have irregular structures.
Variable oxidation states, magnetic characteristics, catalytic activity, and the creation of coordination complexes and colourful compounds are all caused by d-electron activity.

Multiple oxidation states can result from the removal of electrons from both the (n-1)d and ns orbitals due to their similar energies.

They are efficient catalysts in industrial and biological reactions because of their capacity to alter oxidation states and create stable intermediates.

Unpaired d-electrons enable d-d electronic transitions, which absorb particular light wavelengths and give compounds their color.
