Think of it like this, imagine we are walking on a hilly terrain. Some parts are higher, some are lower, and some are at the same height. Now, if we were to draw a line connecting all the points that are at the exact same height, what would that line represent? A contour line, right.
Well, in the dominion of electric fields, equipotential surfaces are very similar to these contour lines, but in three dimensions.
What exactly are Equipotential Surfaces?
In simple terms, an equipotential surface is any surface where every single point on it has the exact same electric potential.
Now, what’s “electric potential”? Think of it like a measure of “electric height” or “electric pressure.” Just as a ball rolls downhill from a higher gravitational potential to a lower one, a positive charge moves from a region of higher electric potential to a lower one.
So, if we are on an equipotential surface, it means we are on a “level playing field” electrically. No matter where we move on that surface, our electric potential doesn’t change.
Why are they so important and what are their cool properties?
No Work Done. This is perhaps the most important property. If we move an electric charge from one point to another on the same equipotential surface, no work is done by the electric field. Why?
Because there’s no change in electric potential. Think of it like pushing a trolley horizontally on a flat ground, we are moving it, but we are not doing any work against gravity because we are not changing its height.
Similarly, here, we are not doing work against the electric field because we are not changing the “electric height” of the charge.
Perpendicular to Electric Field Lines: This is a vital visual aid. Electric field lines always point in the direction of decreasing potential (like water flowing downhill). Equipotential surfaces, on the other hand, are where the potential is constant.
This means that electric field lines always intersect equipotential surfaces at a 90-degree angle. They are always perpendicular. This makes sense because if there was any component of the electric field along the equipotential surface, it would mean there’s a potential difference along that surface, which contradicts its very definition.
Equipotential Surfaces Never Intersect Each Other: Imagine two different contour lines on a map, one at 100 meters and another at 200 meters. Can they ever cross?
No, because if they did, that would mean a single point has two different heights, which is impossible. Similarly, if two equipotential surfaces were to intersect, it would imply that the point of intersection has two different electric potential values, which is physically impossible.
Closer Surfaces Mean Stronger Fields: Where the equipotential surfaces are drawn closer together, it indicates a stronger electric field. This is because a larger change in potential occurs over a smaller distance.
Conversely, where they are spaced further apart, the electric field is weaker. Think of a steep hill versus a gentle slope the contour lines are closer on the steep hill.
Examples to help you visualise:
For a point charge: The equipotential surfaces are concentric spheres centered on the charge. The potential is the same at all points on any given sphere.
For a uniform electric field: The equipotential surfaces are parallel planes perpendicular to the electric field lines.
For an electric dipole: The equipotential surfaces are more complex, but they still follow the rules never intersecting and always perpendicular to the field lines.
They provide a powerful tool for visualising electric potential and understanding concepts like capacitors, potential energy, and even the working of various electronic devices. They simplify complex electric field patterns into understandable “maps” of electric potential.
So, the next time you hear “equipotential surface,” just think of it as a special “level surface” in the electric world where all the points have the same “electric height.” It’s a cornerstone concept that will help you unlock many more exciting ideas in electromagnetism.
Imagine a map with contour lines showing points of the same height. In electricity, an equipotential surface is a 3D “map” where every single point on that surface has the exact same electric potential. Think of electric potential as “electric height” or “electric pressure.” So, if we move a tiny charge anywhere on an equipotential surface, its electrical “height” doesn’t change.
If we move an electric charge from one point to another on the same equipotential surface, no work is done by the electric field. Why? Because work done by an electric field is related to the change in electric potential energy, and if the potential doesn’t change (as it doesn’t on an equipotential surface), then the potential energy also doesn’t change. It is like pushing a box horizontally on a perfectly flat floor we are moving it, but we are not doing work against gravity because we are not changing its height.
They are always perpendicular to each other. Electric field lines show the direction, a positive charge would move, which is from higher potential to lower potential (like water flowing downhill). Equipotential surfaces, on the other hand, are where the potential is constant. If an electric field line was not perpendicular to an equipotential surface, it would mean there is a component of the electric field along the surface. This would imply a potential difference along the surface, which contradicts the very definition of an equipotential surface.
No, never. They can never intersect. If two equipotential surfaces were to cross, it would mean that the point of intersection has two different electric potential values simultaneously. This is physically impossible, just like a single point on a geographical map cannot have two different heights at the same time.
The spacing of equipotential surfaces tells you about the strength of the electric field.
Closer surfaces: Indicate a stronger electric field. This means the potential is changing more rapidly over a shorter distance. Think of it like tightly packed contour lines on a map indicating a steep slope.
Further apart surfaces: Indicate a weaker electric field. The potential is changing more slowly over a larger distance, like gently sloping terrain.
For a single point charge: The equipotential surfaces are concentric spheres centered on the charge. All points on any given sphere are at the same potential.
For a uniform electric field: The equipotential surfaces are parallel planes that are perpendicular to the electric field lines.
For a charged conductor: The entire surface of a charged conductor (in electrostatic equilibrium) is an equipotential surface. In fact, the entire volume of the conductor is also at the same potential.
They are fundamental to understand many concepts. They provide a powerful visual tool for mapping and analysing electric fields. They help us to understand:
How electric potential varies in space.
The relationship between electric field and potential.
The concept of potential energy in electric fields.

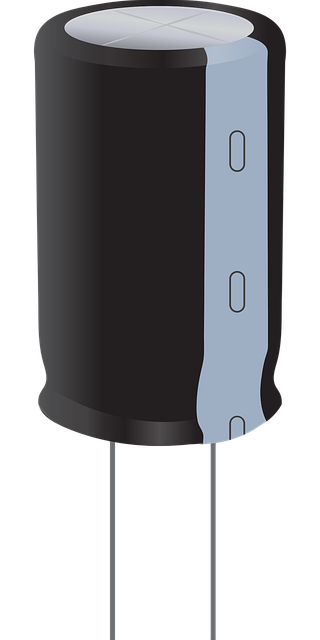

The working principles of devices like capacitors.
How charge distribution affects potential.
