The interesting device known as a heat engine holds the solution. Much of the modern world is silently powered by heat engines, which are ubiquitous. However, what are they and how do they operate?
What is a Heat Engine?
Heat engine is device in which a system is made to undergo a cyclic process resulting in conversion of heat into work. If Q1 is heat absorbed from the source Q2 is the heat released to the sink, and the work output in one cycle is W the efficiency n of the engine is
N = W / Q1 = 1 – Q2 / Q1 = 1 – T2 / T1
Here, the engine takes heat Q 1 from a source at temperature T1 , release heat Q2 to sink at temperature –T2 and delivers work W to the surroundings.
An apparatus that transforms thermal energy into mechanical work is called a heat engine. Stated differently, it absorbs heat from a hot source, utilises some of that energy to move a car or make electricity, and then releases the rest of the heat into a colder environment.
A heat engine operates in a cycle, which means that work is continuously produced by repeating the process. The same fundamental idea underlies all of these devices, whether it is the engine in our automobile, a steam turbine in a power plant, or even a refrigerator operating backwards: heat moves from a hot location to a cooler location, and some of that heat can be used to accomplish beneficial tasks.
How Do Heat Engines Work?
Following are the three vital elements which describes, how heat engines work:
Heat Source (Hot Reservoir): The heat originates here. It could be any high-temperature operation, such as boiling water to create steam in a power plant or burning fuel in an automobile engine.
Working Substance: This is normally a gas or fluid that moves or expands in response to heat in order to carry out work. For example, the air-fuel mixture is the working material of an internal combustion engine.
Heat Sink (Cold Reservoir): Remaining heat is released into a cooler environment, like the atmosphere or cooling system, after it has been utilised to accomplish activity.
The Basic Cycle of a Heat Engine
The majority of heat engines follow a cyclic process, which is a series of processes that repeat. Following are the process:
Heat Absorption: Heat from the hot reservoir is absorbed by the engine.
Work Performance: A portion of the heat is transformed into mechanical effort, such as rotating a turbine or driving a piston.
Heat Rejection: The cold reservoir receives the residual heat.
Types of Heat Engines
Heat engines mainly in two types, each with a unique process for turning heat into work:
1.Internal Combustion Engines (ICEs)
The majority of automobiles and motorbikes have these engines. When fuel, such as diesel or gasoline, burns inside a cylinder, a high-temperature explosion is produced that forces a piston. The engine’s crankshaft rotates and the piston moves, eventually supplying power to the wheels.
Examples: Car engines, motorbike engines, and jet engines.
External Combustion Engines
These engines generate steam by heating a fluid, normally water, as the fuel burns outside the working chamber. The expanding steam powers a piston or a turbine.
Examples: Steam engines in old locomotives and steam turbines in power plants.
Efficiency of Heat Engines
Heat engines are quite helpful, but they are not flawless. The second law of thermodynamics states that no heat engine can operate at 100% efficiency. Waste heat is always a part of the energy loss. The Carnot efficiency, which is influenced by the temperatures of the heat source and heat sink, establishes the heat engine’s maximum potential efficiency.
Real-Life Applications of Heat Engines
Automobiles: The majority of cars on the road are powered by internal combustion engines.
Power Plants: Heat generated from burning coal, natural gas, or nuclear reactions is converted into electrical power by steam turbines in power plants.

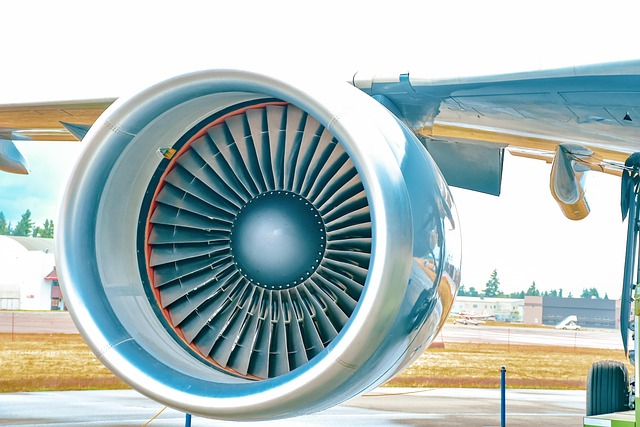

Aircraft and Rockets: Specialised heat engines known as jet and rocket engines power spacecraft and airplanes.
Why Heat Engines Matter
Heat engines are essential for powering homes, businesses, and vehicles. Modern life as we know it would come to a complete stop without them. Scientists and engineers are continuously trying to increase the efficiency of heat engines and provide cleaner, more sustainable alternatives as technology develops.
Heat engines are the important that transform heat into power, motion, and advancement. Heat engines are working hard behind the scenes to make life easier and more convenient, from the electricity that lights up our house to the car we drive.
An apparatus that transforms thermal energy into mechanical work is called a heat engine. It collects heat from a hot reservoir, which is a high-temperature source, utilises some of that heat to do work, like turning a turbine or moving a piston, and then discharges the rest of the heat into a cold reservoir, which is a colder location. The engine may generate work continuously since this process repeats in a cycle.
Heat engines come in two primary types:
Internal Combustion Engines (ICEs): A piston is pushed by a high-temperature gas produced when fuel burns inside the engine. Engines from cars and motorcycles are two examples.
External Combustion Engines: A turbine or piston is powered by a fluid heated by fuel burning outside the working chamber and turning into steam. Steam turbines and engines are two examples.
Heat is transformed into mechanical effort by a heat engine, which normally releases extra heat into a colder space. A heat pump, on the other hand, transfers heat from a colder location to a warmer one by means of mechanical effort. Refrigerators and air conditioners are examples of heating and cooling systems that use heat pumps.
The second law of thermodynamics states that no heat engine can operate at 100% efficiency. There will always be some waste heat released into the environment. The Carnot efficiency, which is influenced by the temperatures of the heat source and heat sink, characterises the heat engine’s potential maximum efficiency.
Carnot efficiency is the theoretical upper limit of how efficient a heat engine can be. It is calculated using the formula:
Efficiency = 1 –TC / TH
Where:
TC is the temperature of the cold reservoir.
TH is the temperature of the hot reservoir.
This formula highlights that the greater the temperature difference between the heat source and the heat sink, the higher the possible efficiency.
Increasing the heat source’s temperature is one way to increase efficiency.
Cutting down on heat loss to the environment.
• Reducing energy losses by utilising cutting-edge materials and technology.
Using waste heat for other purposes by putting in place combined heat and power (CHP) systems.
