We may not be aware that the fundamental idea behind both refrigerators and heat pumps is the same: heat is transferred from one location to another. They use comparable scientific ideas, although having different goals.
What is a Refrigerator?
One classic home equipment that keeps our food and beverages cold is a refrigerator. The refrigerator dissipates heat from within the refrigerator and releases it into the environment rather than cooling the food. Here’s how it works:
1.Evaporation Stage:
A substance known as refrigerant is found within refrigerators. By absorbing heat from the food and the air inside the refrigerator, this refrigerant evaporates. The refrigerant removes heat from the interior as it transforms into a gas.

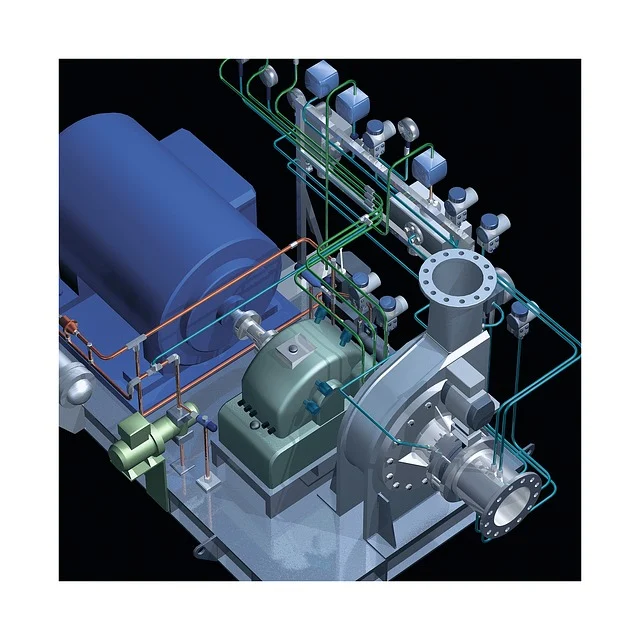

2. Compression Stage:
After arriving at a compressor, the gaseous refrigerant undergoes compression. Compressing a gas raises its temperature and pressure.
3. Condensation Stage:
After that, the hot, high-pressure gas passes through condenser coils, which are found at the refrigerator’s bottom or back. It condenses back into a liquid after releasing heat into the environment as it moves through the coils.
Expansion Valve:
After passing through an expansion valve, the liquid refrigerant loses heat and pressure and becomes a cold liquid once more. The cycle is repeated.
The refrigerator keeps our food fresh by repeatedly running this cycle, which keeps the interior chilly.
What is a Heat Pump?
A refrigerator and a heat pump operate quite similarly, but in opposite directions. A heat pump carries heat from the outside air even in freezing weather into our houses to keep them warm, whereas a refrigerator extracts heat from the interior and releases it outdoors.
Here is how it works:
1.Absorbing Heat:
A refrigerator and a heat pump operate quite similarly, but in opposite directions. A heat pump carries heat from the outside air even in freezing weather into our houses to keep them warm, whereas a refrigerator extracts heat from the interior and releases it outdoors.
2.Compression Stage:
The refrigerant, now carrying the heat, is compressed to increase its temperature.
3. Releasing Heat:
The hot refrigerant moves through coils inside the house, where it releases the absorbed heat into the indoor space.
4. Cooling Mode (Optional):
In the summer, many heat pumps can also operate in reverse, absorbing heat from the interior and releasing it outdoors, much like an air conditioner.
Key Similarities and Differences
Similarities:
The processes of evaporation, compression, and condensation are common in both; they both transport heat using a refrigerant.
The same thermodynamic principles underlie their operations
Differences:
Refrigerator: keeps the interior cool by drawing heat from within and releasing it outdoors.
Heat Pump: keeps the room warm by absorbing heat from the outside and bringing it inside. To chill the area, it can also operate in reverse.
Scientific Principle – Second Law of Thermodynamics
The Second Law of Thermodynamics, which states that heat naturally moves from a hotter body to a colder body, is the foundation for how both refrigerators and heat pumps operate. We can, however, reverse this natural flow by employing exogenous energy, such as electricity. This is what enables both gadgets to work well.
Applications and Everyday Use
Refrigerators: Used to keep perishable goods in homes, supermarkets, and dining establishments.
